| مكان المنشأ: | Guangdong,China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL,CUL,CE,CQC and VDE etc. |
| رقم الموديل: | TR-16N-03 |
| الحد الأدنى لكمية: | 500 Piece/Pieces |
|---|---|
| الأسعار: | USD 0.45-0.92 |
| تفاصيل التغليف: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| وقت التسليم: | 5-20 days |
| شروط الدفع: | L/C, T/T |
| القدرة على العرض: | 1000000 Pole/Poles per Month |
| عرض المحطة: | 12.1 ملم | بلاستيك: | PA66 |
|---|---|---|---|
| تيار: | 85 أ | الجهد االكهربى: | 600 فولت |
| مجلس التوصيل: | نحاس | تصفيح: | مطلي بالقصدير |
| برغي: | صلب | مقاومة التواصل: | أقل من 8 مΩ |
| مجموعة الأسلاك: | 4-20 أوغ | طول التجريد: | 16 ملم |
| تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
||

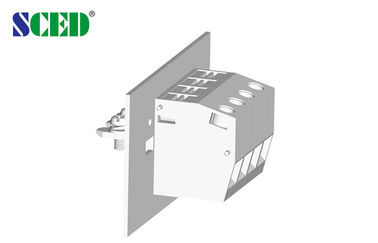

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
Detailed product Description:

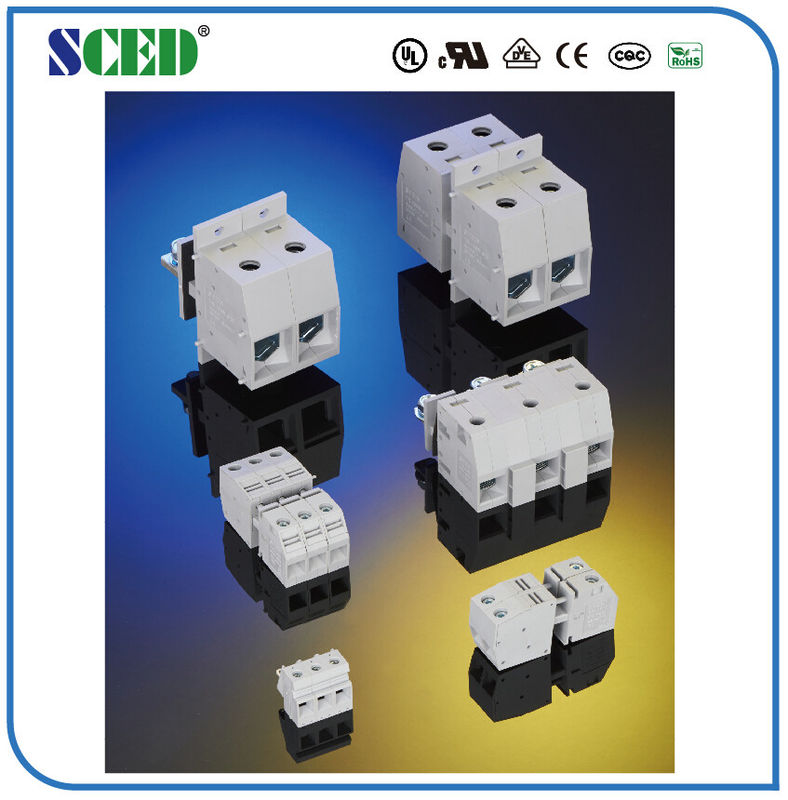

Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available.
Applications:
1.They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting, 2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.

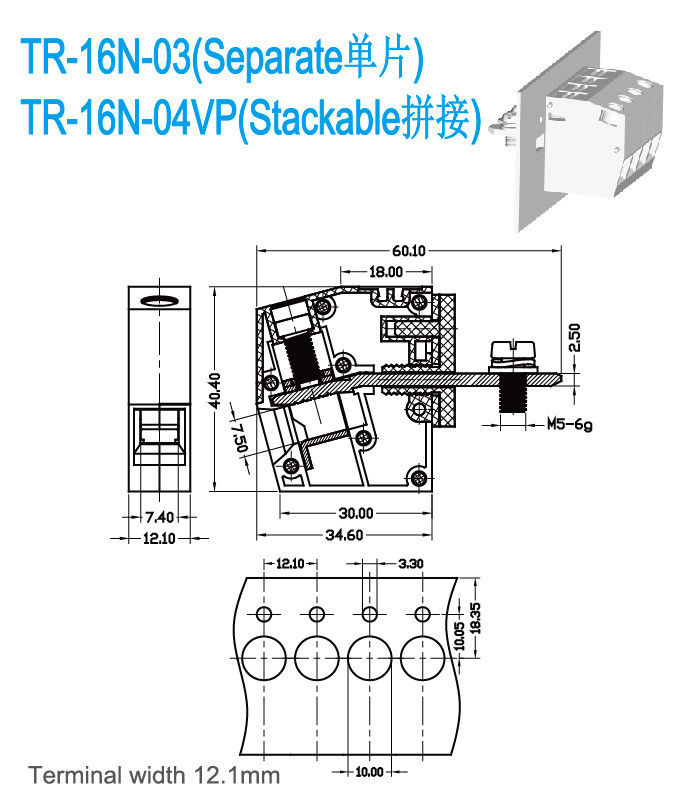

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 85 |
|
600 / 5 |
|
Wire Range AWG |
4-20 |
|
4-20 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 101 |
800 / 101 |
1000 / 101 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
16 |
||
|
Screw / Torque / lbf.in |
M5 / 22-25 |
||
ompetitive Advantage:
