مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TJ381-15 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | الربيع محطة كتلة المسمار | ملعب كورة قدم: | 3.50mm |
---|---|---|---|
عدد جهات الاتصال: | 2P-28P | مجموعة الأسلاك: | 14-26 (سول) 16-26 (شارع) |
جهد فلطيّ مصنّف: | 300V | تيار مصنّف: | 5A |
اللون: | أزرق رمادي | تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك |
تسليط الضوء: | screwless terminal block connector,spring terminal block connector,spring terminal block connector |

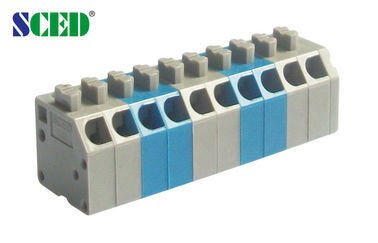

2p - 28p 3.50mm Spring Clamp Terminal Block For Frequency Converters
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

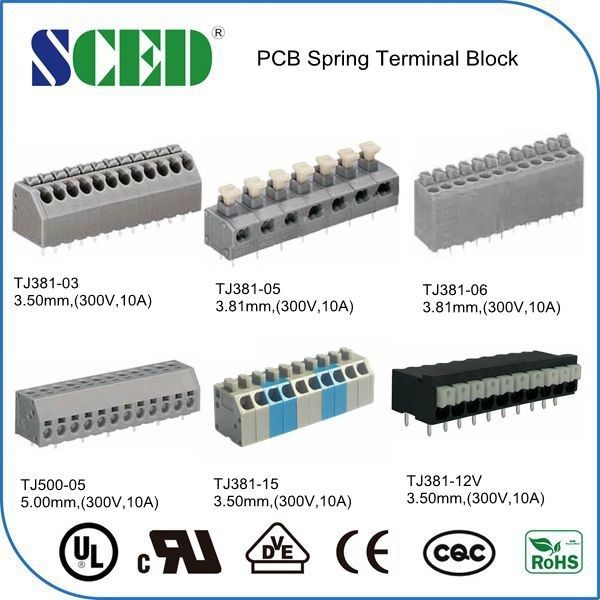

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory
Applications:
PCB, Frequency Converters, Server Site,
Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation,
Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
14-26(sol) 16-26(str) |
|
14-26(sol) 16-26(str) |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
125 / 10 |
250 / 10 |
320 / 10 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Spring / Plating |
Stainless Steel / - |
||
Terminal / Plating |
Brass / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
Stripping Length mm |
8-9 |
Competitive Advantage:

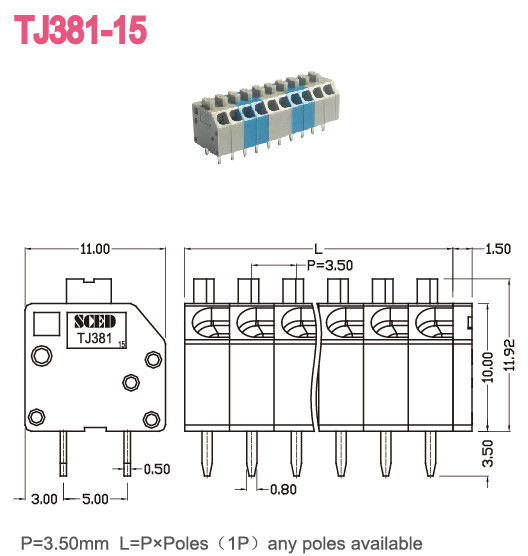

Drawing Photo
