| Type: | Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block | Pitch: | 12.00mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 20-10 awg |
| Rated Voltage: | 600V | Rated Current: | 30A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
||
Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles
Applications:
PCB, Frequency Converters, Server Site,
Switch, Power Supply, Electric Lighting, Industry Control, Automation,
Rail Transportation, Communication, Electric Power, Security,
Medicine Equipment, Military, Elevator, etc..
Spec.
Pitch: 12mm
Color: Black
Type: Mount on PCB
Poles: Any poles available
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 30 |
600 / 30 |
|
|
Wire Range AWG |
20-10 |
20-10 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 /30 |
800 / 30 |
1000 / 30 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
3.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Conduction Board/ Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw Torque mm |
M4 / 10.6-13 |
||
Feature Advantage:
1.The characteristics is can be combined to be different positions
2. Products can be mounted into modular or PCB
3. This series has good mechanical properties and electrical performance
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
How to order:
Drawing Photo

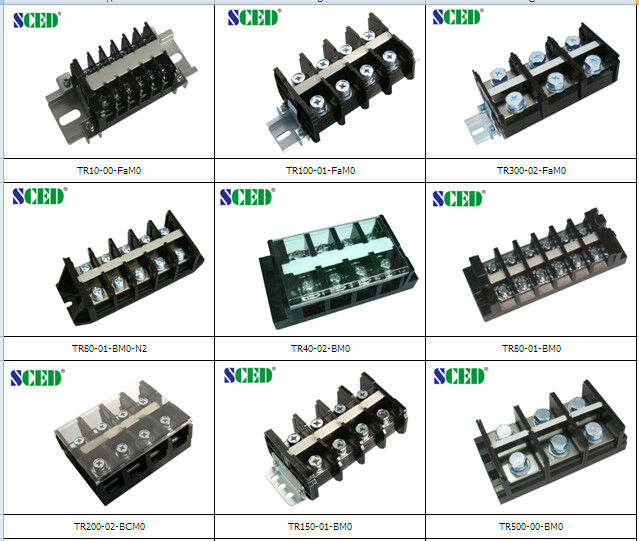

Other series Photo
