مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TR60-01-BM0 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
نوع: | لوحة جبل محطة كتلة ، كتل محطة حاجز ، كتل محطة الطاقة ، محطة كتلة الكهربائية | ملعب كورة قدم: | 19.00mm |
---|---|---|---|
عدد جهات الاتصال: | أي البولنديين المتاحة | مجموعة الأسلاك: | 4-20 awg |
جهد فلطيّ مصنّف: | 600V | تيار مصنّف: | 60A |
اللون: | أسود | تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك |
تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |

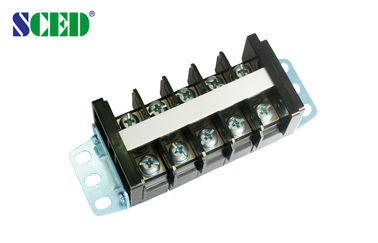

PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
Spec.
1. Right angle wire inlet;
2. Double levels;
3. Pitch: 19.00mm
4. Color: Black
5. 600V/60A
6. Wire range: 4-20AWG
Applications:
1. Mount on Din Rail
2. Switch electronic
3. Industrial Control
4. Power supply
5. Energy conservation
Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 60 |
600 / 60 |
|
Wire Range AWG |
4-20 |
4-20 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 / 60 |
1000 / 60 |
1000 / 60 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
14 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Terminal / Plating |
Brass / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
12-15 |
||
Screw / Torque / lbf.in |
M5 / 18-22 |
Feature Advantage:
1. Combined to be different positions
2. Products can be mounted into Din rail
3. This series has good mechanical properties and electrical performance
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response

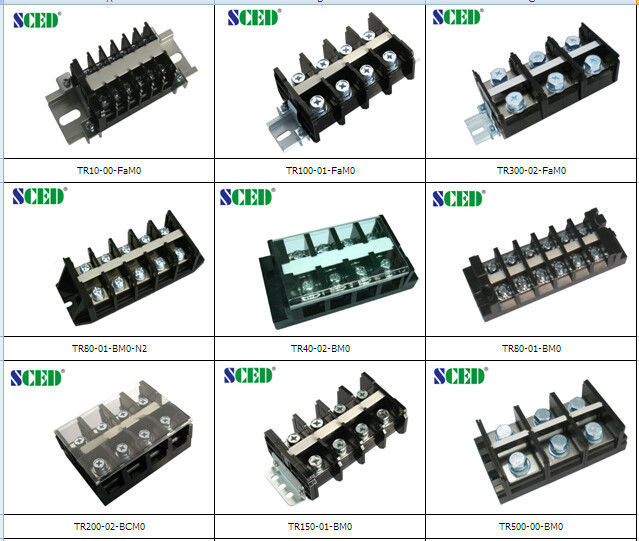

4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Drawing:
