| مكان المنشأ: | Shenzhen, China |
| اسم العلامة التجارية: | SCED |
| إصدار الشهادات: | UL, CE |
| رقم الموديل: | TR20-03 |
| الحد الأدنى لكمية: | 500 |
|---|---|
| الأسعار: | Get latest price |
| تفاصيل التغليف: | Standard Export Carton |
| وقت التسليم: | 7-20 working days |
| شروط الدفع: | T/T |
| القدرة على العرض: | 1KK poles each monthly |
| Type: | Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block | Pitch: | 10.00mm |
|---|---|---|---|
| Number Of Contacts: | 1-20 P | Wire Range: | 24-12 awg |
| Rated Voltage: | 300V | Rated Current: | 20A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| تسليط الضوء: | panel mount terminal block connector,pcb mount terminal blocks,pcb mount terminal blocks |
||

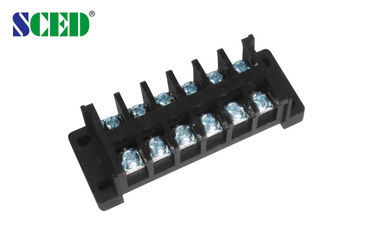

10mm Electrical Terminal Block Connectors 300v 20A Barrier Screw Clamp Terminal
■Right angle wire inlet;
■Single Level;
Tag: Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Applications:
PCB,
Server Site, Switch,
Power Supply,
Electric Lighting, Industry Control, etc..
Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 20 |
300 / 10 |
|
|
Wire Range AWG |
24-12 |
24-12 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400 /20 |
630 / 20 |
800 / 20 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
1.25 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Conduction Board/ Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw Torque mm |
M3.5 / 7-10 |
||
Feature Advantage:
1. PCB type mount panel
2. Hole to hole is 19.00mm Pitch: 10.00mm
3. Plastic housing is PC (UL94 V-0), operating temperature: -40℃~+120℃
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Drawing:
