مكان المنشأ: | Shenzhen, China |
اسم العلامة التجارية: | SCED |
إصدار الشهادات: | UL, CE |
رقم الموديل: | TJ381-00 |
الحد الأدنى لكمية: | 500 |
---|---|
الأسعار: | Get latest price |
تفاصيل التغليف: | Standard Export Carton |
وقت التسليم: | 7-20 working days |
شروط الدفع: | T/T |
القدرة على العرض: | 1KK poles each monthly |
تطبيقات: | ثنائي الفينيل متعدد الكلور ، محولات التردد ، موقع الخادم ، والتبديل ، وإمدادات الطاقة ، والإضاءة الك | اللون: | أخضر |
---|---|---|---|
عدد جهات الاتصال: | 2P-28P | ملعب كورة قدم: | 3.81mm |
تيار مصنّف: | 10A | جهد فلطيّ مصنّف: | 300V |
مجموعة الأسلاك: | 16-24 awg | نوع: | كتلة محطة PCB ، كتل محطة المسمار PCB ، كتل محطة PCB المسمار |
تسليط الضوء: | screw type terminal block,screw connection terminal block,screw connection terminal block |

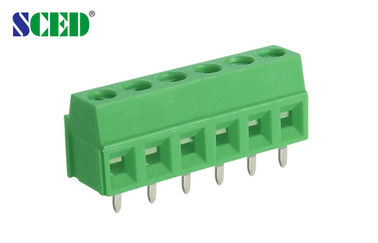

Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power,
Security, Medicine Equipment, Military, Elevator, etc..
Spec.
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you
want.
How to order:
TAG:
PCB mount terminal blocks , PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer

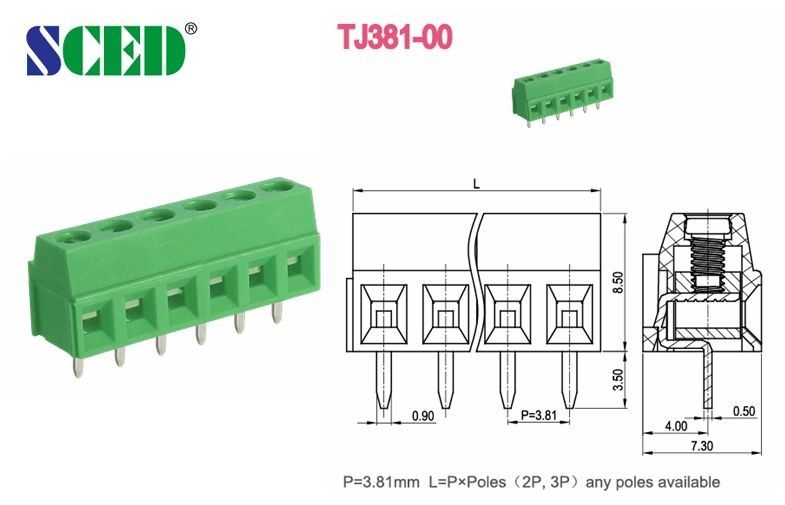

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 10 |
|
|
Wire Range AWG |
16-24 |
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 10 |
200 / 10 |
400 / 10 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.0 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.3 |
||
Stripping Length mm |
4-5 |
||
Screw / Torque / lbf.in |
M2 / 1.8-2.0 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
