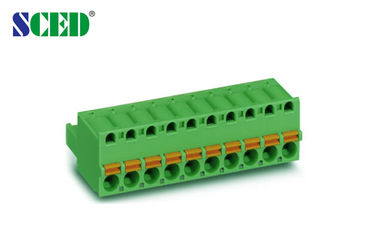

Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

    • Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing
  • Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

    تفاصيل المنتج:

    Place of Origin: Guangdong China
    اسم العلامة التجارية: SCED
    إصدار الشهادات: CE,UL,CUL,CQC,VDE etc.
    Model Number: TP508P-07

    شروط الدفع والشحن:

    Minimum Order Quantity: 500 Piece/Pieces
    الأسعار: USD 0.024-0.068
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    اتصل
    مفصلة وصف المنتج
    اللون: أخضر نوع: جزء الإناث
    ملعب كورة قدم: 5.08mm تيار: 18A
    الجهد االكهربى: 300V بلاستيك: PA66
    قواطع: نحاس عمود: 2-20 أعمدة
    فئة الالتهاب: UL94 ، V-0 عزل مقاومة: فوق DC500V ، 500MΩ
    تسليط الضوء:

    pluggable terminal block connector

    ,

    plug in terminal block

    Brass Pluggable Terminal Block Pitch 5.08mm 300V 18A Plastic Housing



    Detailed product Description:



    Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    ■Single Level;  □Double Levels;  □Triple Levels



    This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06.



    Standard color: Green. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/18



    300/18

    Wire Range                       AWG

    12-30



    12-30

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 18

    320 / 18

    630 / 18

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Stainless Steel / -

    Contactor / Plating

    Brass / Tin Plated

    Other Data



    Stripping Length                    mm

    10



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing 0
